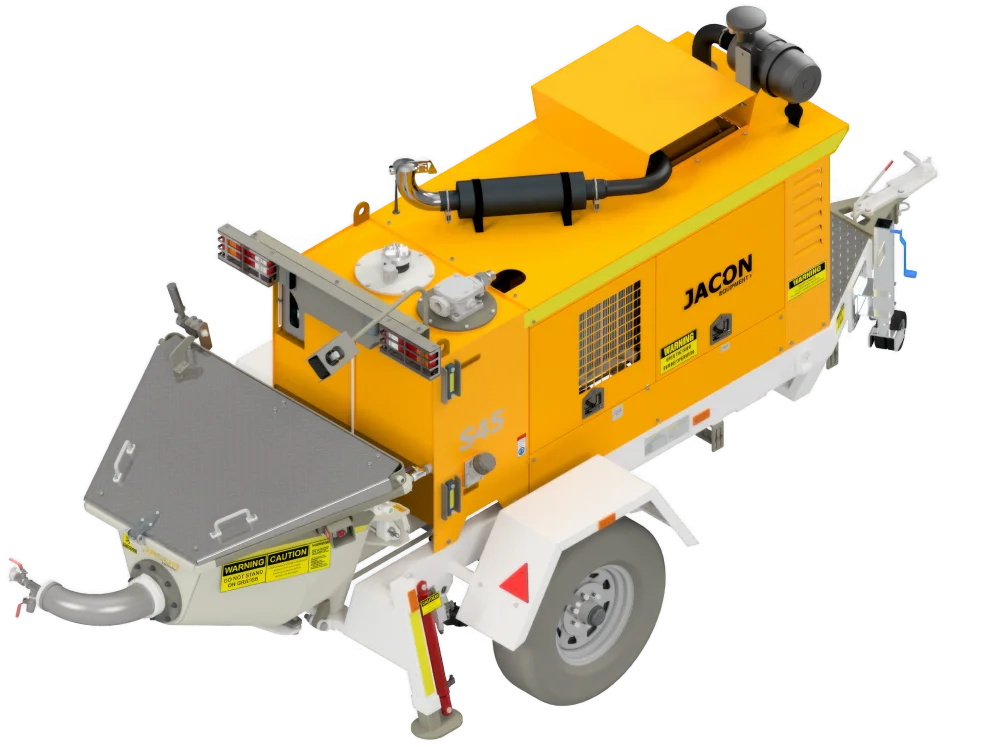

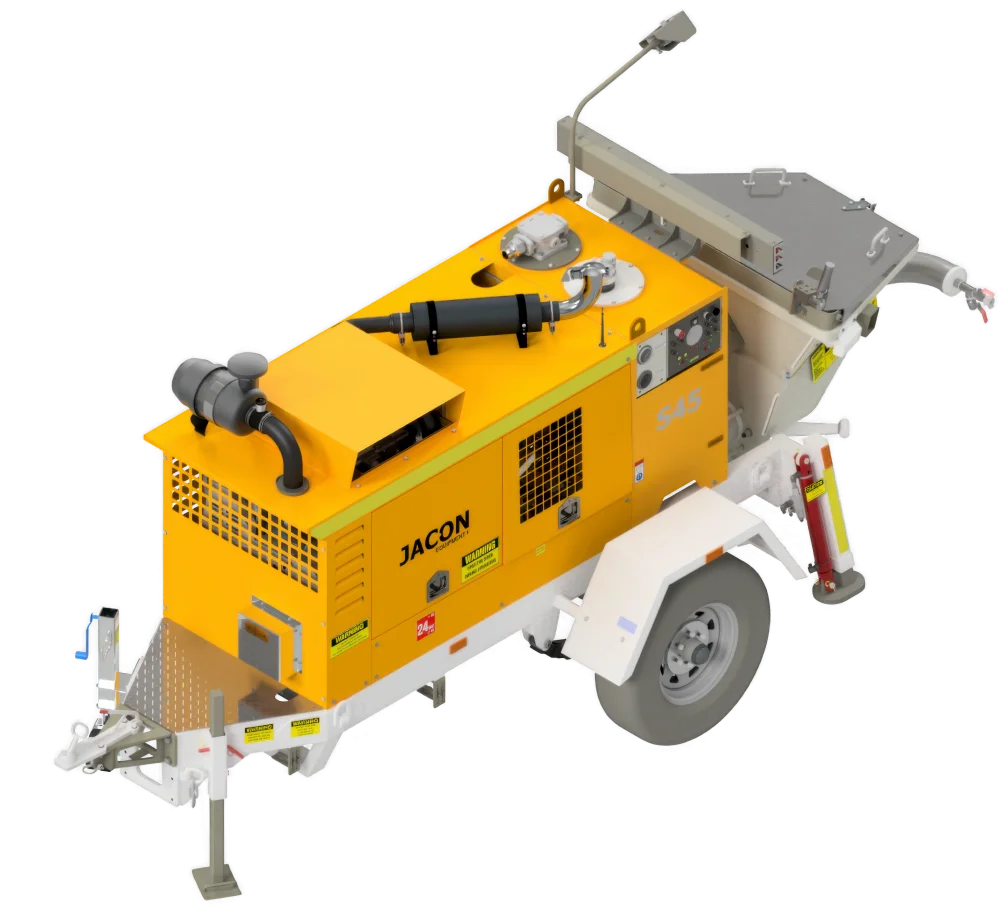

Trailer Concrete Pump

S45 Model

  • Power Unit: 4 cylinder turbo charged, Deutz diesel engine, 73KW @ 2300 RPM
  • Hydraulic Pressure Max: 350 Bar
  • S-Valve
  • 4 Channel Remote control system
  • Variable Displacement Piston Pump
  • Rated Output: 45 Cubic Metres / Hour
  • Line Pressure Max: 78bar
  • Vertical Reach: 125 metres
  • Horizontal Reach: 350 metres
  • Hard chromed concrete cylinders: 160mm
  • Stock length: 900mm
  • Outlet: 100mm
  • Hydraulic pilot system with Electric over-ride
  • Fully automatic stroke adjustment
  • Spot Light on Hopper
  • Hydraulic Jack Legs on rear
  • Available in diesel or electric powered
  • Find out more on our downloadable PDF
